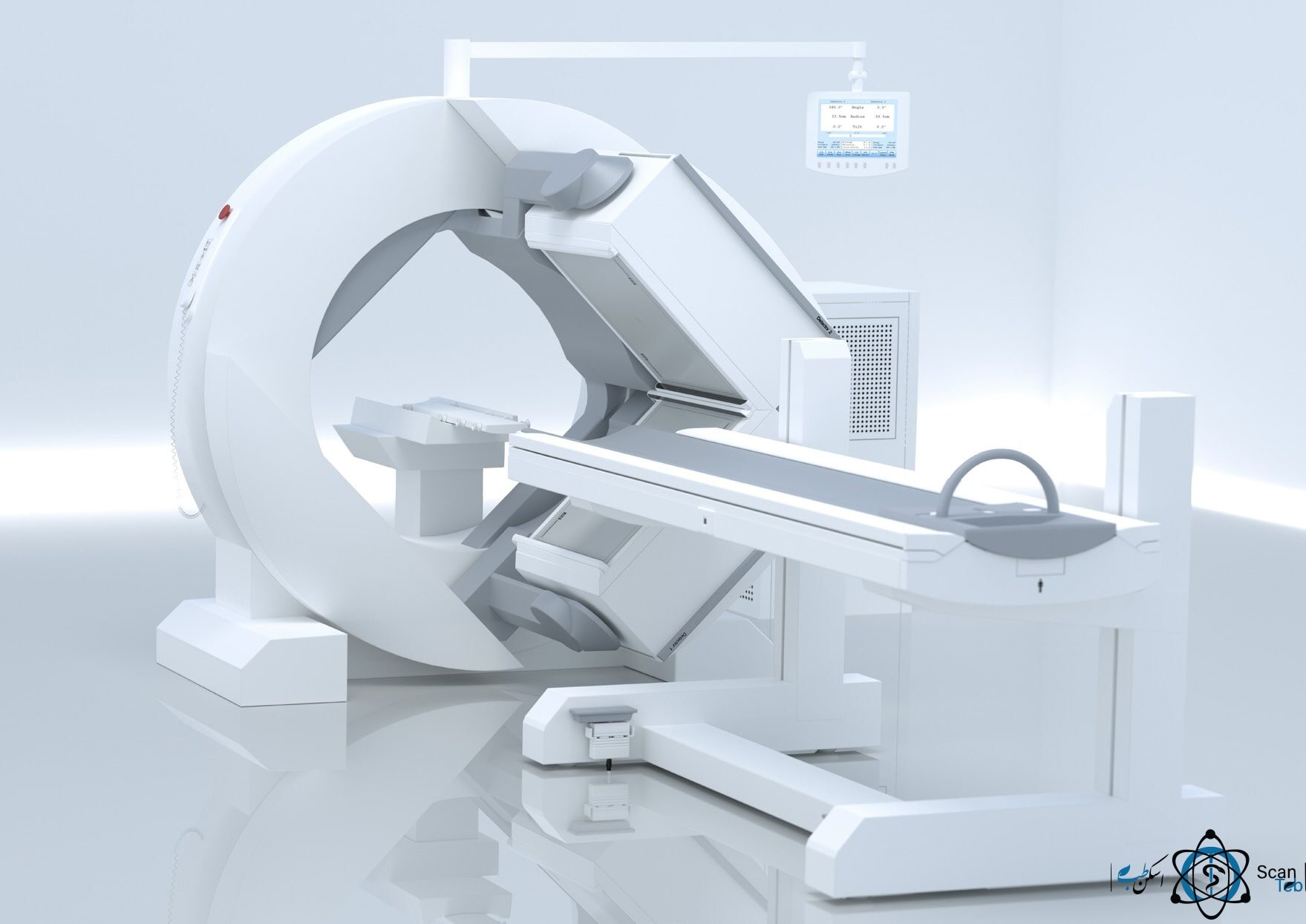

Siemens ( MiE )- ECAM Scintron

The ECAM gamma-chema is another relatively old Siemens referbuished product, a general gamma camma machine and is applicable to all SPECT nuclear medicine scans, whole-body and planar flat. This product is available in two different sizes. The technical specifications of the machine are continued.
The field of view of the ECAM is large and rectangular with dimensions of 53.3 cm x 38.7 cm with 59 PMT per detector.
Crystal material used in ECAM system is sodium iodide with a thickness of 9.5 mm and dimensions of 44.5 x 59 cm. The maximum detectable energy is 511 kV (FDG radiopharmaceutical energy used in PET scanning). Shielding detectors are designed to power up to 400 kV.
The maximum load of the bed is 180 kg for the patient. And the maximum bed speed is up to 50cm per minute.

[currency_switcher]

scanteb specialized reference for medical equipment

توضیحات

ECAM SCINTRON

PATIENT TABLE

▶ Extra low table position (48,3 cm / 19“) for easy access of patients with limited mobility

▶ Integrated armrests (no additional parts) guarantees high patient comfort

▶ Ultra-thin patient pallet (2.5 mm / 0.1“aluminum) for excellent image quality and only 7% attenuation of radiation

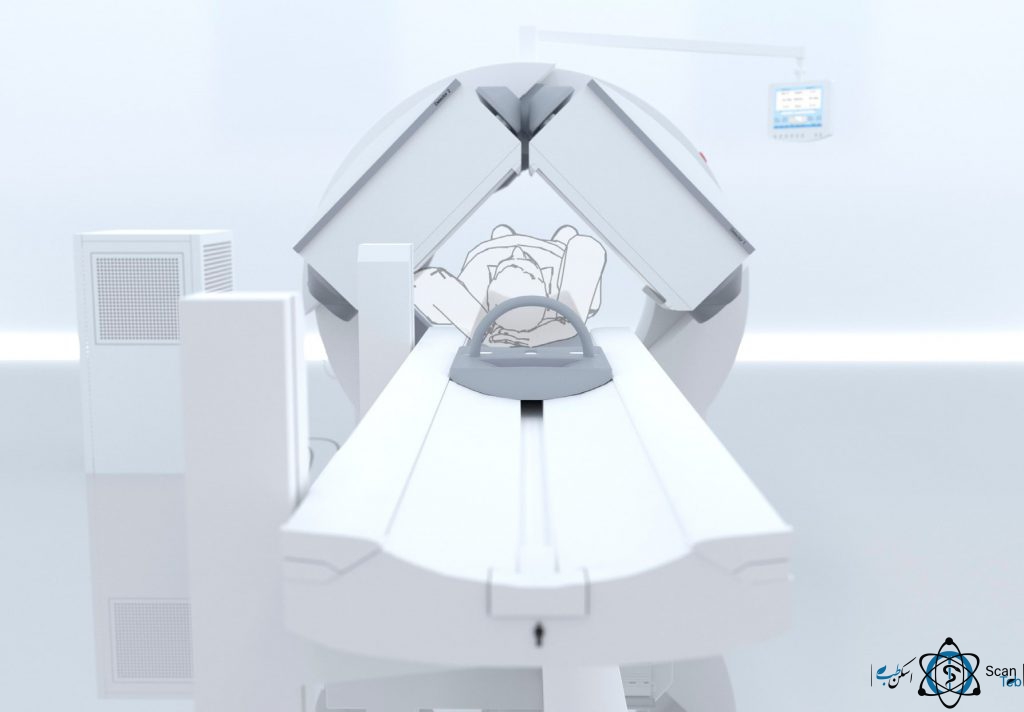

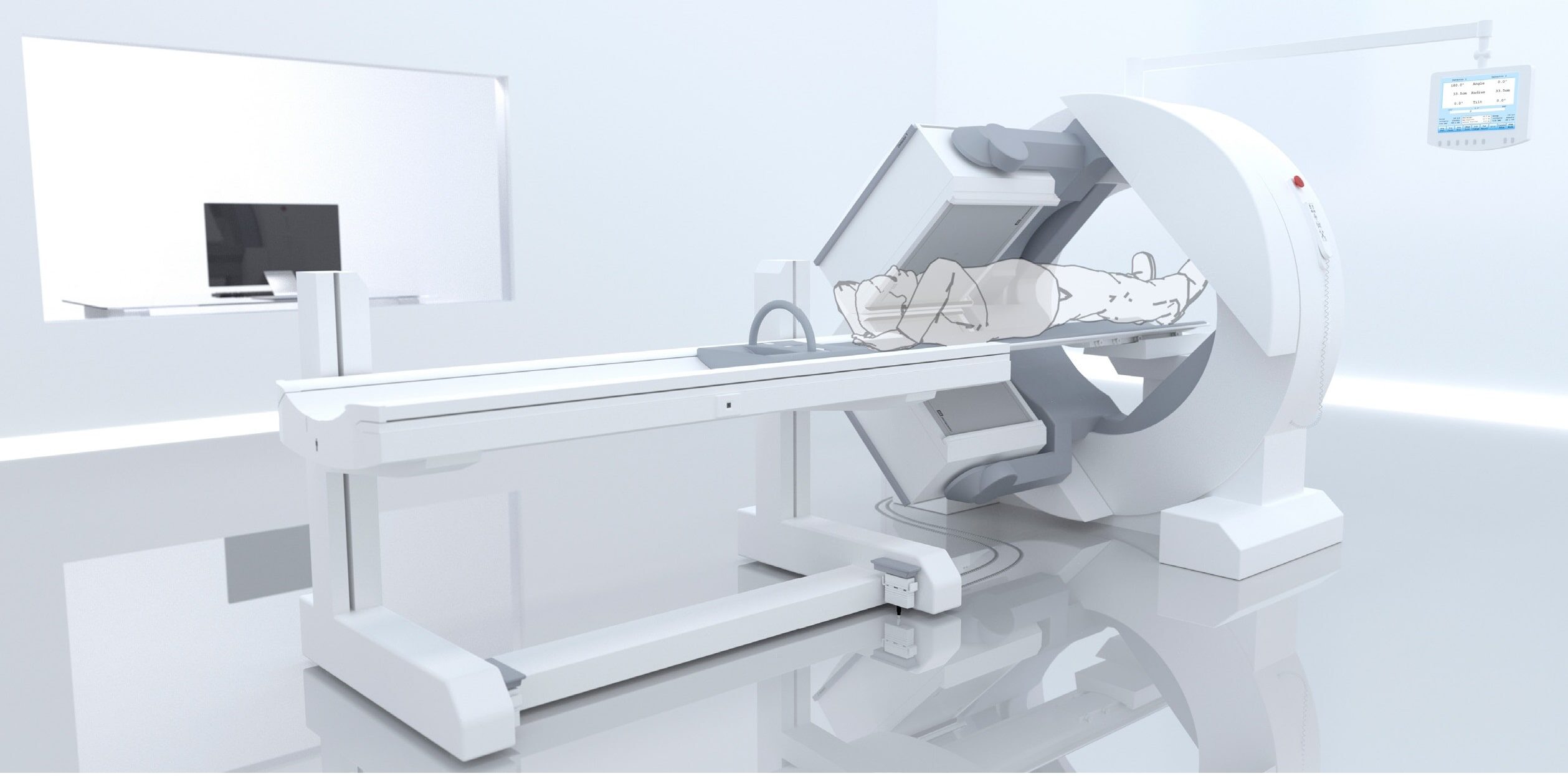

OPEN GANTRY DESIGN

▶ Variable angle detector configuration of 90° or 180°

▶ Detector tilt from 20° cranial to 90° caudal

▶ Patient-positioning-monitor (PPM) and remote control enable acquisition start/stop functionality for reliable patient preparation

▶ PPM allows to trigger automatic detector movements for a fast work routine

▶ Single or dual detector systems available

DETECTOR

▶ FOV 53,3 cm x 38,7 cm (21” x 15.25”)

▶ 59 PMTs per detector for excellent resolution

▶ Lead shielding for energies up to 511 keV

▶ 3/8˝ NaI(Tl) Scintillation-Crystal

▶ Average detector distance using body contouring only 1.1 cm (0.45”) for optimal resolution and image quality

Detector

Detector Type rectangular
Field of View (FOV) 53.3 cm x 38.7 cm (21” x 5.25”)
Number of PMTs 59 per Detector
Crystal Thickness 9.5 mm (3/8”)
Energy Range up to 511 keV
System sensitivity (with LEHR-Collimator) absolute ≥ 202 cpm/μCi

Positioning

Detector Tilt Range caudal 90° / cranial 20°
Detector Rotation Range -30° to +440°
Average Auto contour Distance 1.1 cm (0.45”)

Patient Handling System

Pallet Width Whole Body 64.8 cm (25.5”)

(PHS)

Pallet Width SPECT 35.6 cm (14”)
Maximum Scan Lenght 202 cm (79.5”)
Vertical Motion Range 48.3 – 110.5 cm (19” – 43.5”)

Gantry

Weight (incl. LEHR-Collimators) Single Detector 1120 kg (2470 lbs)
Dual Detector 1580 kg (3485 lbs)

Collimators

Low Energy LEHR, LEAP
Medium Energy MEGP
Pinhole Various inserts available
High Energy HEGP

Accessories

Positioning Support Myocard SPECT
Brain SPECT
ECG Trigger
Additional Phantoms for Quality Control available
