GE- Infinia

تماس بگیرید

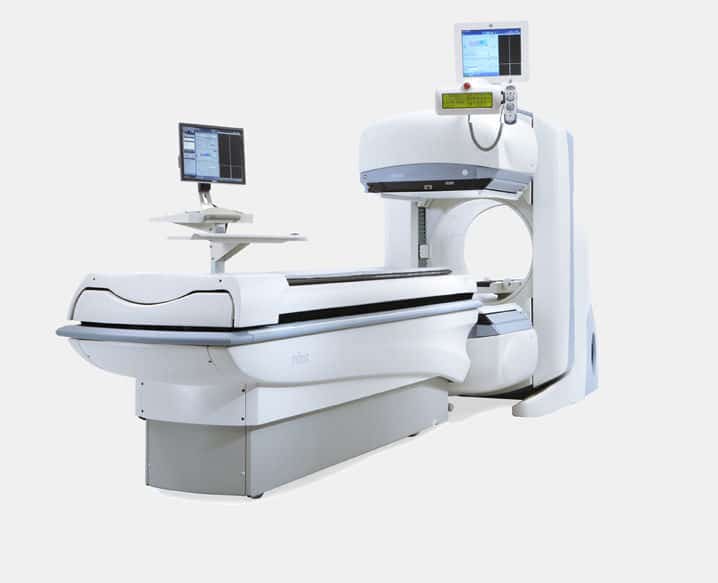

The GE Infinia is a dual head, multi geometry (variable angle) nuclear medicine camera with LFOV detectors. The Infinia was designed for general purpose studies and is capable of whole body, planar and SPECT imaging.
Features
• Slip ring gantry allowing unlimited tomographic rotation
• Externally mounted detectors
• Automated body contouring
• Automated, simultaneous dual collimator changing
• Rectangular 500mm x 400mm FOV
Available Options
• Convenience Devices
• Extended Warranties
• Fully Equipped Hot Lab
• New Cardiac Gate
• Patient Comfort Devices
• Printers
• Professional Accreditation Support Services (PASS)
• Software Add-Ons
• Uninterruptible Power Supply

توضیحات

Features of GE Infinia Gamma Camera

Open, path-through flexible geometry gantry
• Slip-ring gantry enables continuous multiple tomographic rotations in the same direction
• Externally mounted detectors, with flexible positioning for all major studies
• Adjustable scanning radius for both 90 degree and 180 degree SPECT scans Elite digital dual detectors
• Crystal thickness – 3/8 in./9.5 mm
• 59 high quantum efficiency PMT’s – each coupled with one ADC per PMT

• Extra large, rectangular FOV: 540 mm x 400 mm
Elite digital dual detectors
• Crystal thickness – 3/8 in./9.5 mm
• 59 high quantum efficiency PMT’s – each coupled with one ADC per PMT
• Extra large, rectangular FOV: 540 mm x 400 mm (21.25 in. x 15.75 in.)
Dual-axis cantilever imaging table

• Low attenuation carbon fiber tabletop

• Easy patient handling, comfortable tabletop
Infinia acquisition station

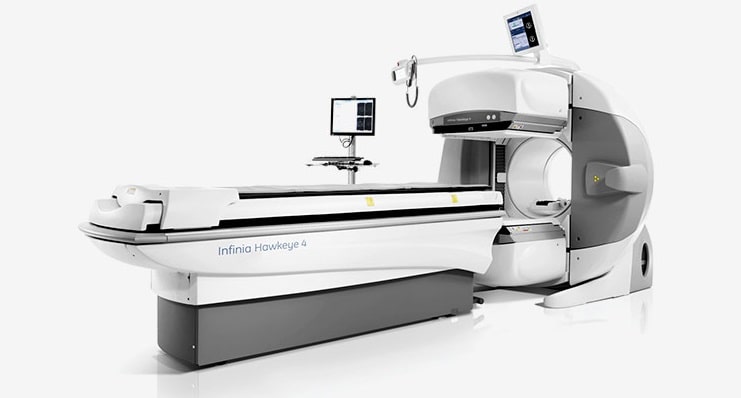

Hawkeye 4 integrated CT system
Available options
• Collimators (new and preowned)
• Pediascan
• Axial head holder
• 10KVA UPS
• IVY R-wave trigger
• Xeleris software options
Configuration
• Infinia Hawkeye 4 refurbished
• Optional Xeleris workstation for camera integration included
• Infinia table leg extender
• 17” LCD acquisition monitor
• Optional 17” LCD Persist kit (I2) included
Hawkeye 4 Integrated CT system
• Slip-ring gantry mounted X-ray unit and CT detector
• 350 W HV power generator
• Fixed anode tube with high beam energy – 140 kVp, 2.5 mA
• CT detector – 4 rows of 384/1.8 x 7.6 mm cadmium tungstate detectors

توضیحات تکمیلی

تعداد PMT در هر دتکتور

59

تعداد دتکتور

دو عدد

FOV

500mm x 400mm
