SYSTEM HIGHLIGHTS
HIGHLY VERSATILE
▶ Thyroid scintigraphy (Tc-99m, I-123, I-131) with uptake-calculation
▶ Kidney scintigraphy (TER, GFR and ERPF calculation)
▶ Bones scintigraphy (3 phase protocol, static images, ROI-quantification)
▶ Static studies (SLN, lung, kidney, RSO-scintigraphy)
▶ Dynamic studies (gastric emptying, esophagus, salivary glands, gallbladder-EF, HIDA)
▶ MUGA studies (multi gated)
USER FRIENDLY
▶ Thyroid positioning device easily positioned for syringe measurements and uptake calculations

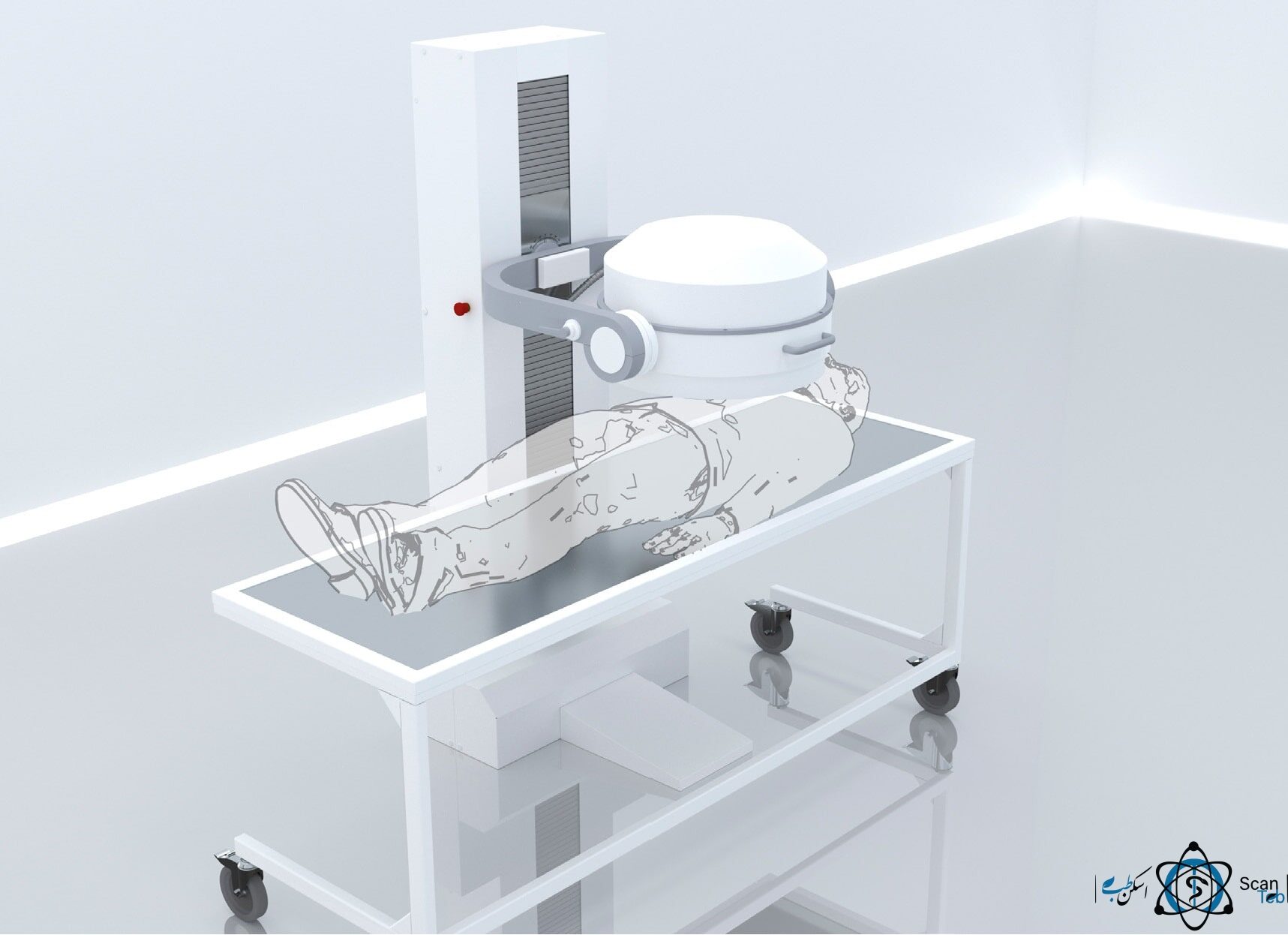

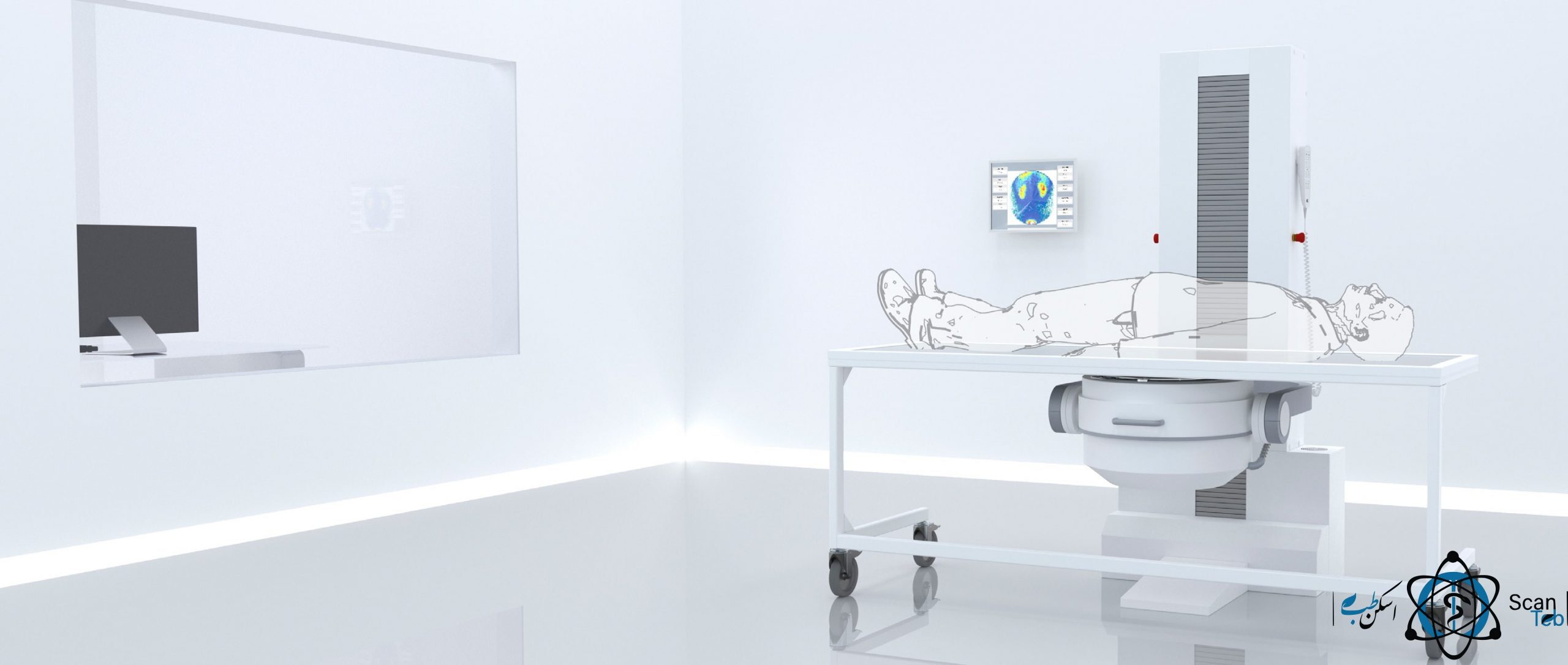

▶ Mobile patient table for posterior kidney imaging
▶ Magnetic remote control with marker and acquisition start / stop functionality
▶ Hospital bed imaging of immobile patients
SMALL FOOTPRINT
▶ Minimal space requirements width 89 cm (35”) – height 201 cm (79”) – depth 122 cm (48”)
▶ Magnetic remote control can be placed freely at the gantry
▶ Trigger input for ECG-gating of MUGA studies

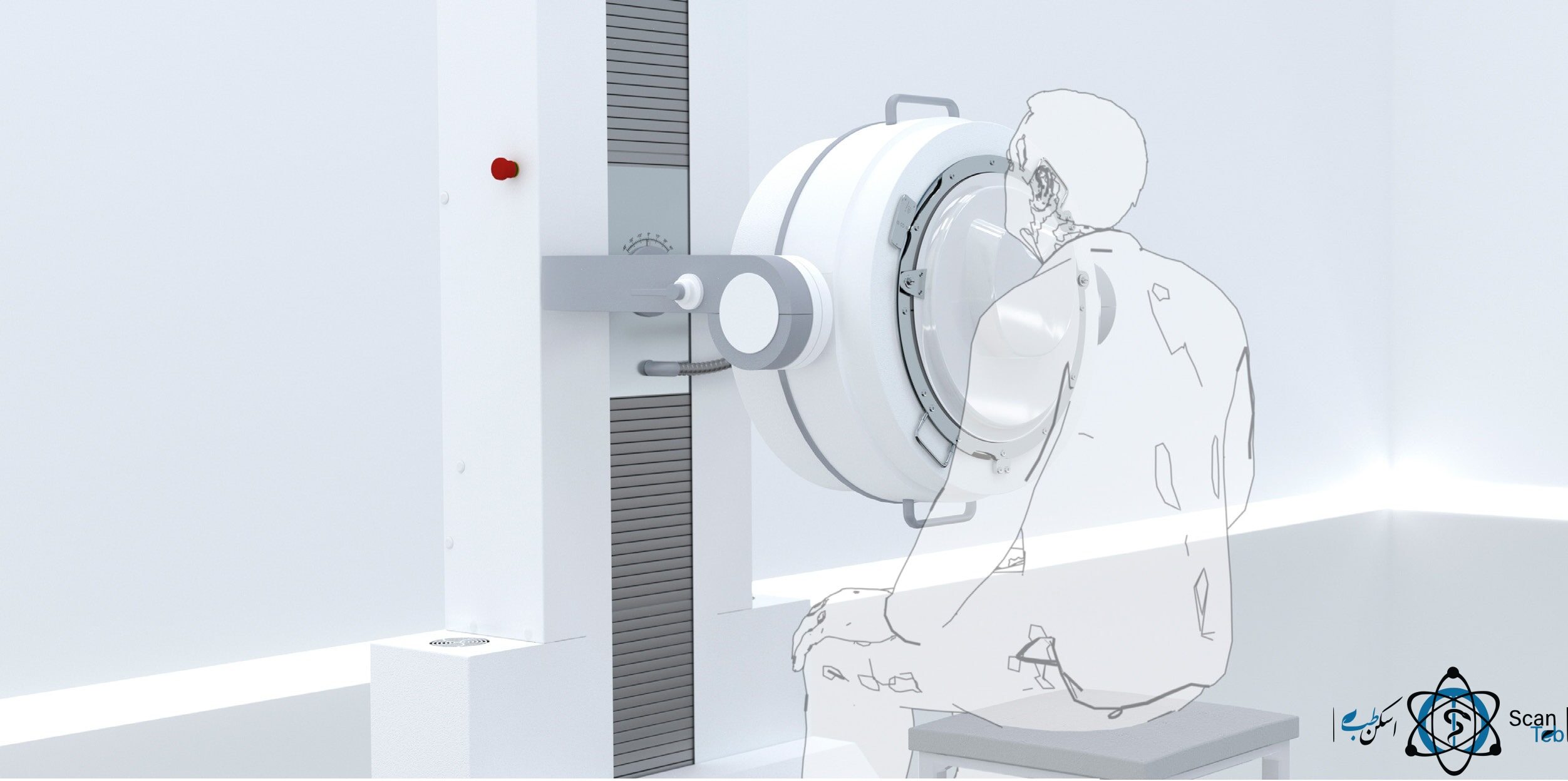

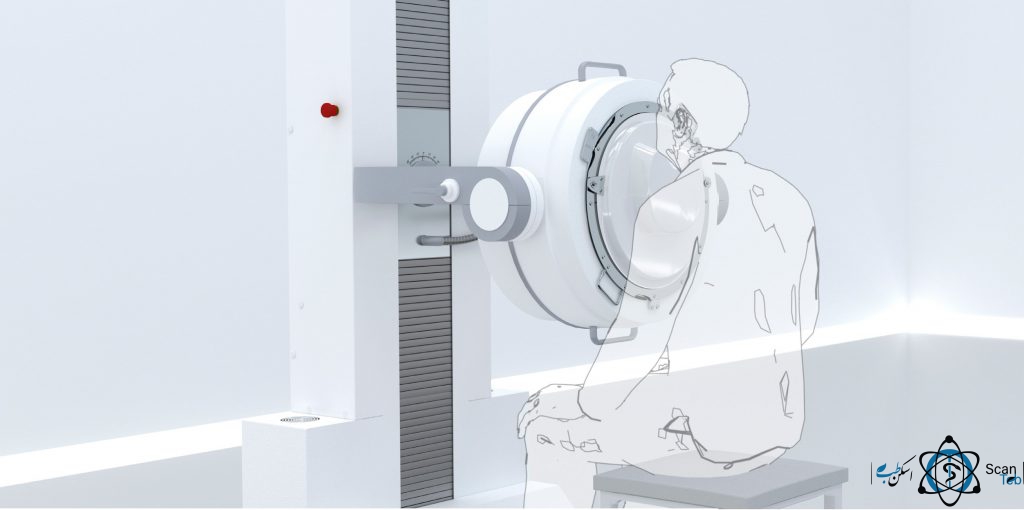

▶ Compact stand for patient imaging in standing, sitting and lying position

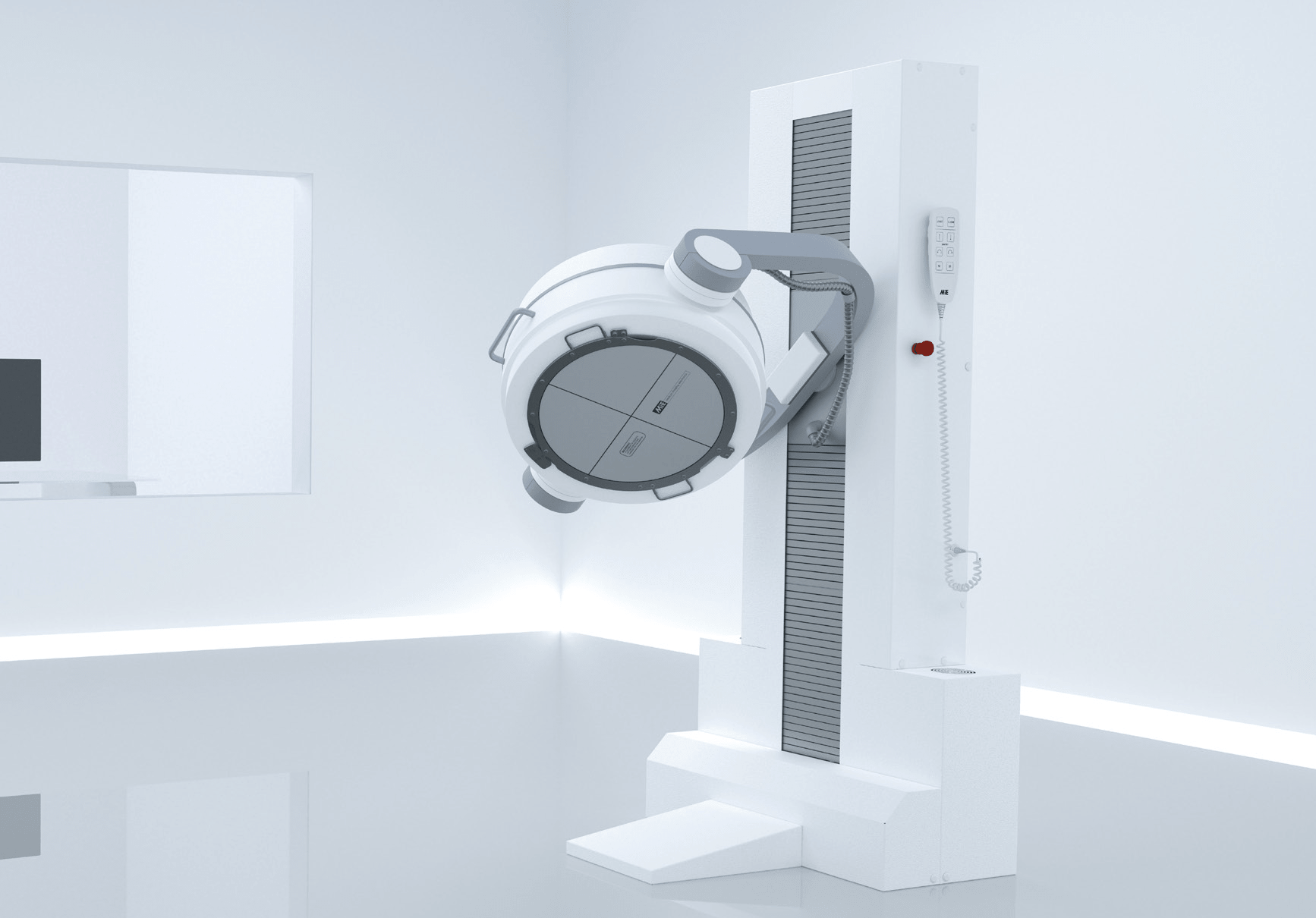

▶ Detector rotation -45° to +45° / Detector tilt -125° to +125°
DIGITAL DETECTOR
▶ 38.7 cm (15.2˝) field of view
▶ 37x 3” PMTs for excellent resolution
▶ Lead shielding for energies up to 400 keV
▶ High-integrated Detector Electronic FRED (Fast Response Enhanced Detector)
▶ 3/8˝ NaI(Tl) Scintillation-Crystal
Detector |
Detector Type | circular |
| Field of View (FOV) | Ø 38.7 cm (15.2”) | |
| Number of PMTs | 37x 3“ | |
| Crystal Thickness | 9.5 mm (3/8”) | |
| Energy Range | up to 400 keV | |
Positioning |
Detector Rotation Range | -45° to +45° |
| Detector Tilt Range | -125° to +125° | |
Dimensions |
Height | 202 cm (79”) |
| Width | 89 cm (35”) | |
| Depth | 122 cm (48”) | |
Vertical Movement |
Total Vertical Travel | 100 cm (39.5”) |
| Speed | 150 cm/min | |
Weight |
Without Collimator | 650 kg (1433 lbs) |
Collimators |
Low Energy | LEHR, LEAP, Long bore |
| Medium Energy | MEGP | |
| Pinhole | Various inserts available | |
| High Energy | HEGP | |
Accessories |
Positioning Support | Patient Table |
| Kidney Chair | ||
| Thyroid Positioner | ||
| ECG Trigger | ||
| Additional P-Scope |
